Medium Voltage Motors

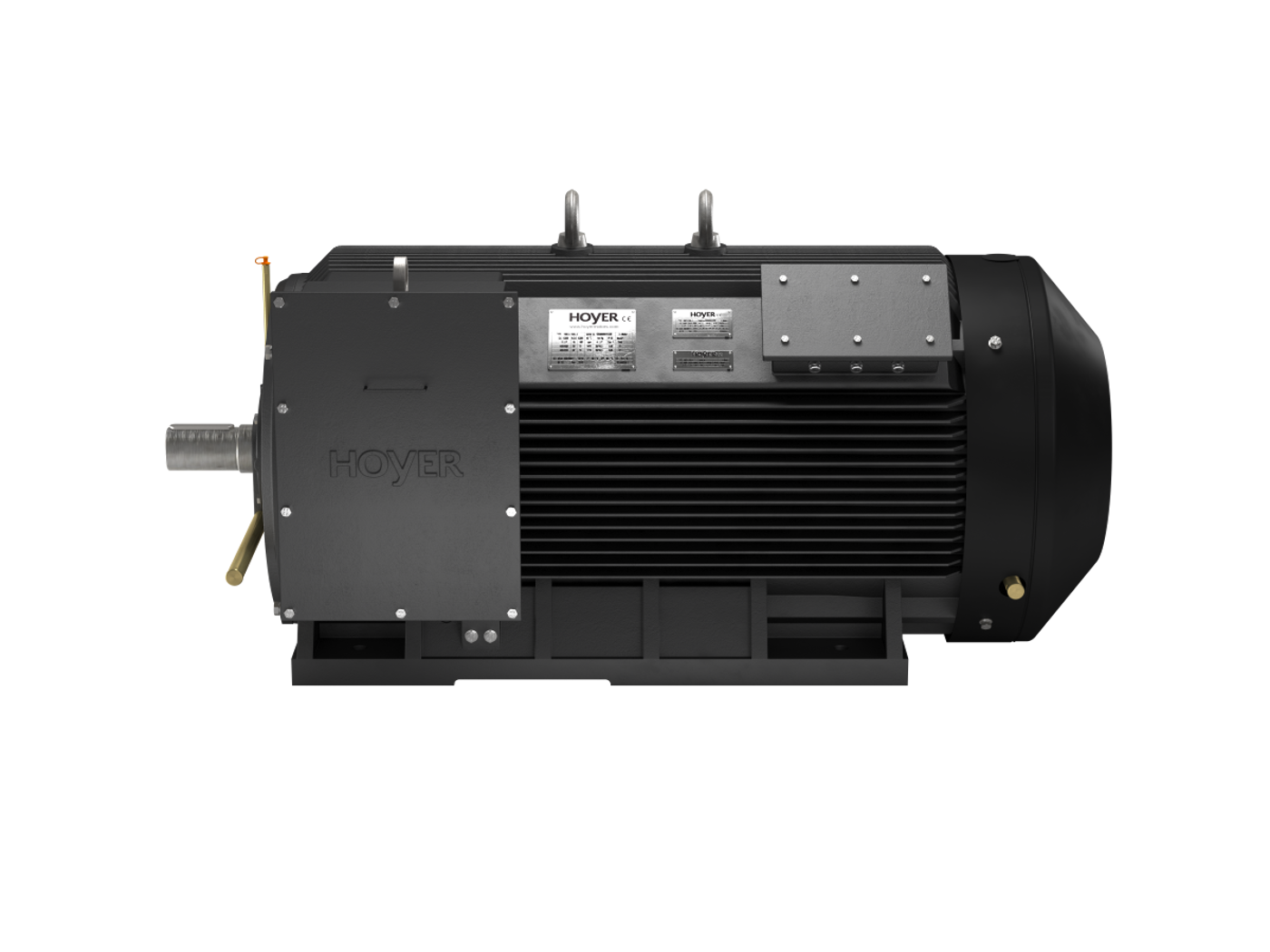

Hoyer Medium Voltage Motors (MV) are designed for high performance and are suitable for applications and industries where high output motors are needed.
Voltages
3 | 3.3-6 | 6.6-10 | 11
SIZE
355-560
Output
185-1800 kW
IP CLASS
IP55
Technical Information
Our range of medium voltage motors is used across various industries. The demand for large, electrically driven applications is increasing, and medium voltage motors are often the ideal choice when a high output is needed. A higher voltage motor allows a lower current, which enables the use of smaller cables to supply the application – making medium voltage motors a cost-optimising solution.
Lifetime is a critical element with medium voltage motors, so our product range is tested for both electric and thermal lifetime. All motors are tested and approved according to IEC 60034-18-32 & 42 for electric lifetime and IEC 60034-18-31 for thermal lifetime, giving a tested minimum lifetime of 20,000 hours.
Our medium voltage motors come in three voltage options: 3/3.3 kV, 6/6.6 kV and 10/11 kV. Standard frequency is 50 Hz; 60 Hz can be produced on request.
