Products

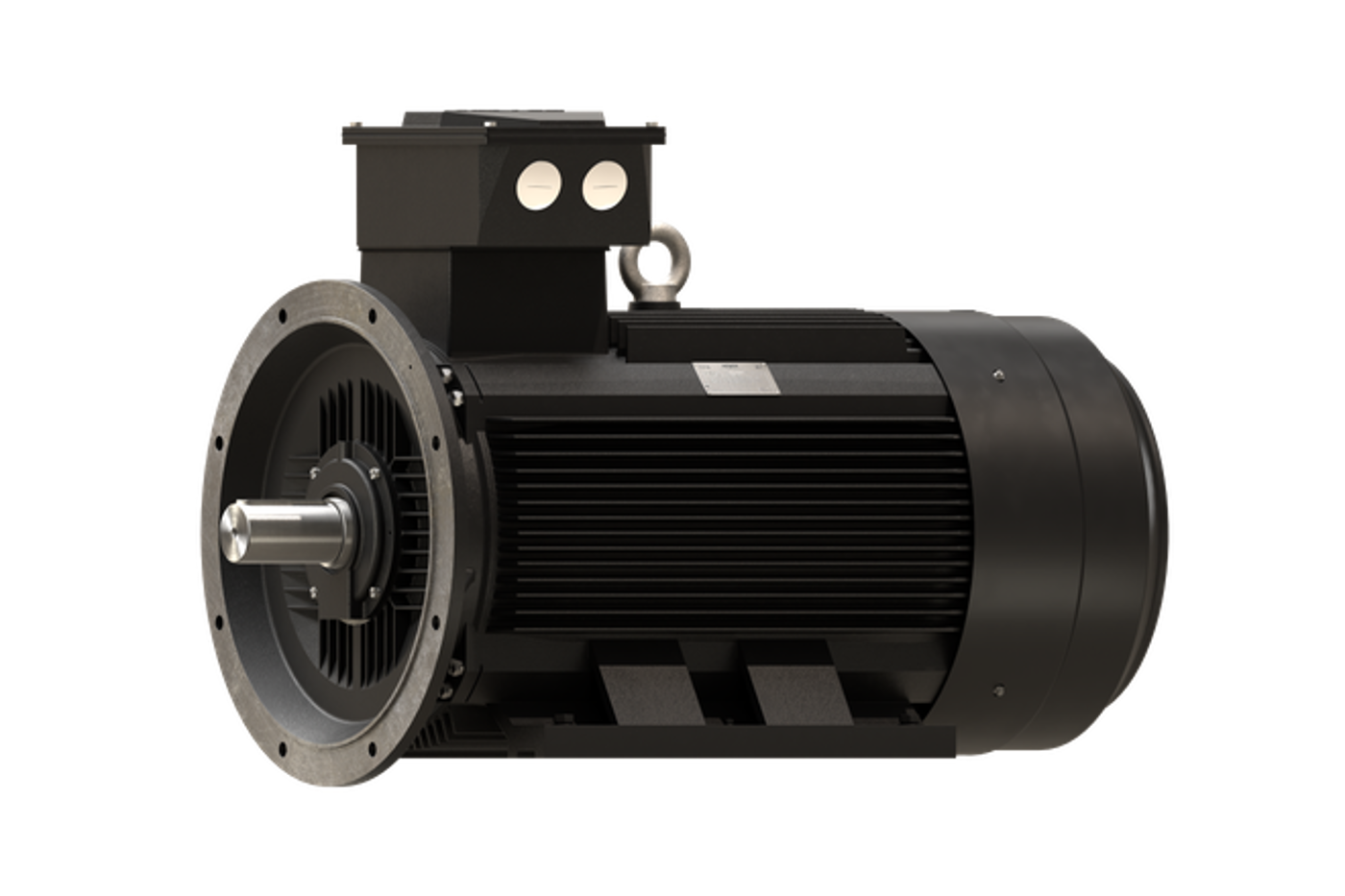

IE4 Electric Motors
Our IE4 electric motors are used for a wide range of applications across industrial markets where energy efficiency is key.
IE4 motors from Hoyer are manufactured according to IEC 60034-30 and come with documentation confirming their super-premium efficiency and reliability.
OUTPUT RANGE
0.75–315 kW
FRAME SIZES
80–355
PROTECTION CLASS
IP55
INSULATION CLASS
F
Technical Information
Hoyer AC IE4 electric motors are manufactured according to the efficiency class system specified under IEC 60034-30. Their high quality, reliability and performance are well documented.
The motors are asynchronous, low voltage three-phase TEFC motors.
Motors in size 80-200 have closed bearings greased for life. All Hoyer IE4 motors have a locked bearing in the drive end as standard. Other voltages are supplied on request.
IE4 motors meet the EU's tightened super-premium efficiency requirements for motors in the 75-200 kW range. Documented compliance and lower running costs.
Part of the EU's broader initiative to raise energy efficiency and reduce environmental impact across industrial practices.
Key Benefits
Significant energy savings
With their super-premium efficiency, IE4 motors reduce energy consumption, leading to substantial cost savings over time.
Reduced environmental impact
By consuming less power, these motors contribute to a lower carbon footprint, aiding in achieving sustainability goals.
Versatility in applications
Whether it's manufacturing, processing, or any other industrial application, IE4 motors deliver consistent performance.
Long-term cost benefits
The initial investment in an IE4 motor is offset by its long-term savings and reduced maintenance needs.
IE4 Motors for Efficient, Reliable Performance
IE4 electric motors represent a high standard of energy efficiency, combining energy savings with reliable performance across a wide range of applications.
Our IE4 motor range is designed to meet diverse application requirements without compromising performance. With our application expertise, we help ensure a fit-for-purpose solution that matches the specific demands of your operation.
Engineered for optimal energy efficiency across applications of different scales and complexities, Hoyer IE4 motors offer a versatile and reliable choice for modern industry.
What to Consider When Selecting an IE4 Motor
Duty cycle and load
Consider how the motor will operate over time. IE4 motors are particularly well suited to continuous, high-load applications where energy efficiency can make a significant difference.
Power and speed requirements
The motor’s power rating and speed should match the specific requirements of the application to ensure reliable and efficient operation.
VFD and control compatibility
If the motor is used with a variable frequency drive (VFD), compatibility between the motor, drive and control setup is essential to achieve the intended performance and efficiency.
Operating environment
Ambient temperature, humidity and other environmental conditions can affect motor performance and lifetime and should therefore be considered when specifying the motor.
Long-term energy efficiency
IE4 motors can reduce energy consumption over their operating lifetime, supporting lower operating costs as well as your organisation’s energy and sustainability targets.
Downloads
Relevant Downloads
Find the product catalogue, certificates and manuals relevant to this
motor so you have the documentation you need close at hand.
