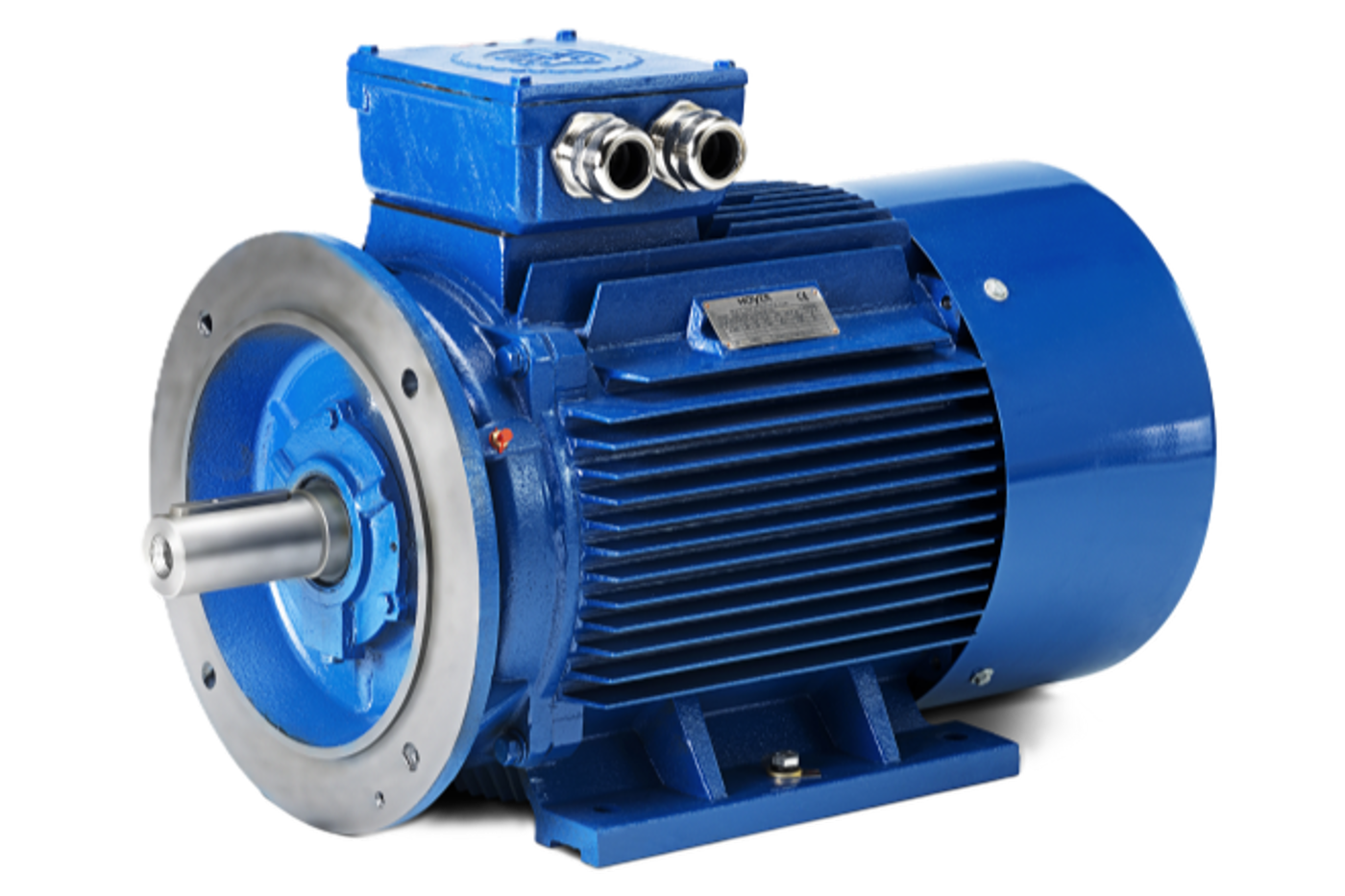

IE1 Electric Motors
Despite an increasing focus on efficiency in the maritime industry, Hoyer IE1 marine motors are still widely used for all types of marine applications. IE1 motors are known for their reliability and cost-effectiveness.
These motors are often utilized in environments where high efficiency is not the primary concern or in applications with limited operational hours.
OUTPUT RANGE
0.11–733 kW
FRAME SIZES
56–400
PROTECTION CLASS
IP55-IP66
INSULATION CLASS
F
Technical Information
Hoyer IE1 electric motors are manufactured according to international standards under IEC. Hoyer IE1 marine motors are still powerful despite the addition of both IE2 and IE3 motors to the range.
The motors are asynchronous, low voltage three-phase TEFC motors.
Cast iron Y2E2 motors are available on request from size 80-450. Output ranges from 0.11-733 kW across sizes 56-400. 690V D is available on request, along with other non-standard voltages.
Key Benefits
Low upfront cost
IE1 motors offer a lower upfront cost, making them a practical, budget-friendly choice for less demanding or infrequent-use applications.
Suitable for less frequent operation
For applications with limited operating hours or lower demands for energy efficiency, IE1 motors can provide a suitable solution.
Reliable performance for basic applications
IE1 motors can deliver dependable performance in applications where higher efficiency classes are not required.
IE1 Motors for Reliable, Cost-Effective Performance
Hoyer IE1 motors provide reliable performance for applications where high energy efficiency is not the primary requirement, and where initial investment or limited operating hours are important considerations.
While IE1 motors consume more energy than higher efficiency classes, they can still be a suitable choice for specific applications, including less demanding operating environments and markets where energy efficiency requirements are less stringent.
For applications with longer operating hours or greater focus on energy consumption, transitioning to higher efficiency motors such as IE2, IE3 or IE4 can help reduce energy costs, lower emissions and meet evolving efficiency requirements.
What to Consider When Selecting an IE1 Motor
Application Requirements
Consider the specific demands of your application, including required torque, speed and load, to ensure the motor is suitable for the intended operation.
Operating Frequency
Consider how often and for how long the motor will operate. IE1 motors may be suitable for applications with limited operating hours or less frequent use.
Energy Efficiency and Operating Cost
Assess whether IE1 efficiency is sufficient for the application and consider the balance between the initial investment and long-term energy consumption and operating costs.
Environmental Impact
Energy consumption also affects the environmental footprint of the motor over its lifetime and should be considered when comparing motor options.
Regulatory Requirements
Make sure the selected IE1 motor complies with the efficiency and regulatory requirements that apply to your market, industry and application.
Transitioning from IE1 to higher efficiency motors
The trend of transitioning from IE1 to higher efficiency motors like IE2, IE3, and IE4 motors is gaining momentum, driven by the need for energy conservation and sustainability.
The benefits of this shift include reduced energy costs, lower carbon emissions, and compliance with evolving energy regulations. However, the transition poses challenges, such as higher initial investment and the need to retrofit or upgrade existing systems. Despite these challenges, the long-term benefits of higher efficiency motors make this transition a strategic move for many industries.
What sets IE1 motors apart from other electric motors?
IE1 motors differ from higher efficiency motors primarily in their energy consumption and performance. They are less efficient, meaning they consume more energy to deliver the same output as more efficient IE motors.
This results in higher operational costs over time. However, their lower initial cost makes them a suitable option for certain applications. IE1 motors are often used in less demanding environments or in regions where energy efficiency regulations are not as stringent.
